Battery Testing and Logging for PX Units...
The quick and simple way of testing Symmetra PX batteries.
Simply plug in the Sybester into your SYBTU1-PLP battery tray and instantly get voltage and battery data. Then activate the load tester and record the performance of the tray under load. Using the companion Bluetooth application, this critical data can be stored for later comparison and evaluation.
Use the Sybester to learn the true health of your Symmetra SYBTU1 or SYBTU2 battery trays. This tool can save money for end-users and empower service professionals.
Quick and Easy gathering of key data

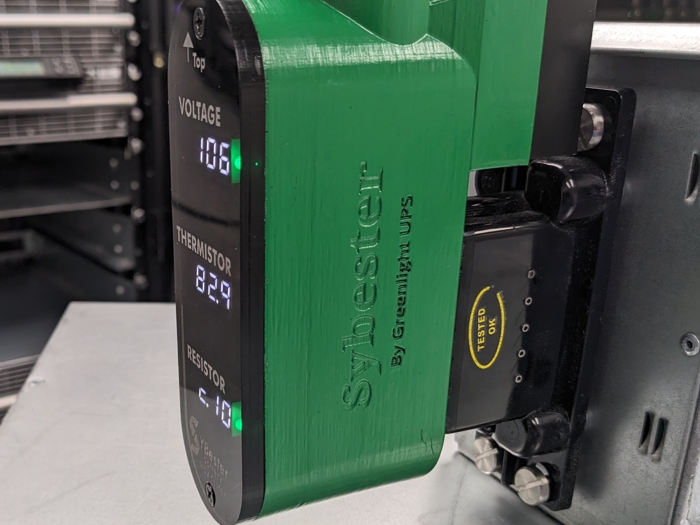

The Sybester quickly gives key metrics about your SYBTU1 or SYBTU2 battery. Just plug in the Sybester to the rear port of the SYBT battery tray and instantly get the tray’s VOLTAGE, the tray’s TEMPERATURE and the tray’s RESISTOR VALUE.
The Sybester also works on dead battery trays or empty trays. Just press the Activation button to get these values.
.

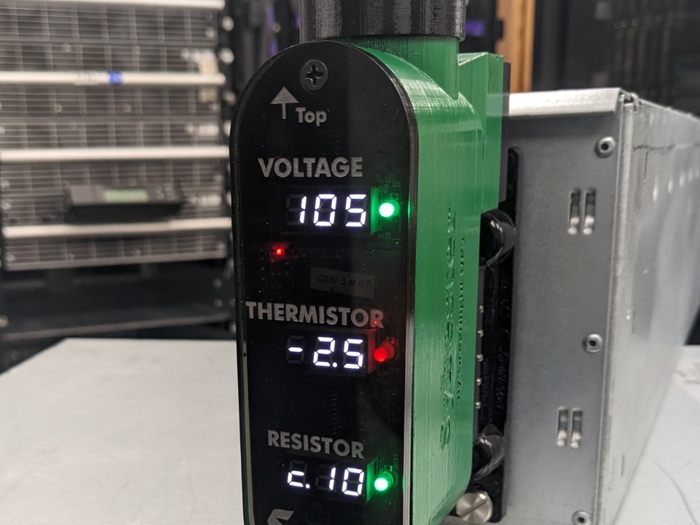

Load Test batteries for confidence in performance
The Sybester also can load test the batteries in the tray with its built-in load. Just press the Activation button on a working SYBT battery and the Sybester sends a 300watt load to the tray. This defined load will cause the SYBT’s voltage to drop in response. This drop in voltage is the tray’s Sybester score.
As a SYBT ages the voltage drop will increase. However, when comparing the value over a population of other SYBTs, you can quickly find outliers. Or use it to when making up new batteries in the field.
.

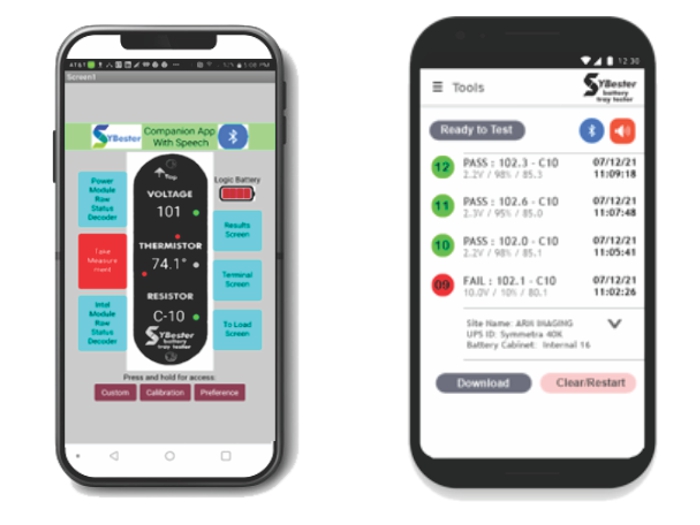

Save the Results for future comparison
The Voltage Drop or Sybester score will be saved in the companion App. Over a population of several batteries and over time, you will find a Sybester score that helps you decide when to replace your batteries.
Export the data to a spread sheet, as part of a Preventive Maintenance program or Commissioning report.
.

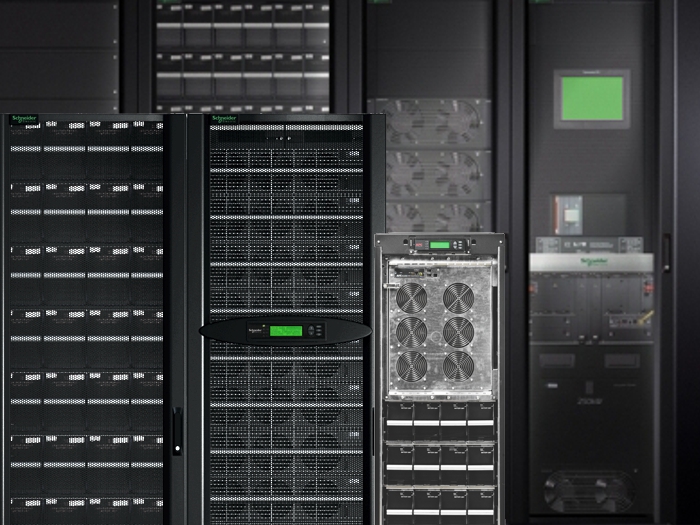

Works on all Symmetra PX trays
The Sybester can test all SYBTU1-PLP and SYBTU2-PLP Batteries. These batteries are found in the Symmetra PX 10-80kva, Symmetra 16-64kw, Symmetra 100k, and Symmetra 125-500k systems. Plus these trays are used in Smart UPS VT, Galaxy 3500, and APC Industrial Systems.
And keep an eye out for the 4th Generation Sybester with the ability to measure Symmetra LX SYBT5 batteries.
.
Photos
Specifications
Connection: 7 pin Powerpole connection
Display: Three 7 segment LCD screen
Load Test: 3amps @ 96volt
Power Source: Primary: SYBTUx-PLP power
Power Source: Alternaive: 4 AAA Batteries
Sampling Rate: 1 value/ sec
Communication: Bluetooth paired to phone app
Resistor Presets: V66, C10, B20, C69
Warranty: 12 months
Core Sybester Model
Android Phone w/Bluetooth Sync'd to unit
SybesterAPP License w/free lifetime upgrades
Quick start guide and Manual

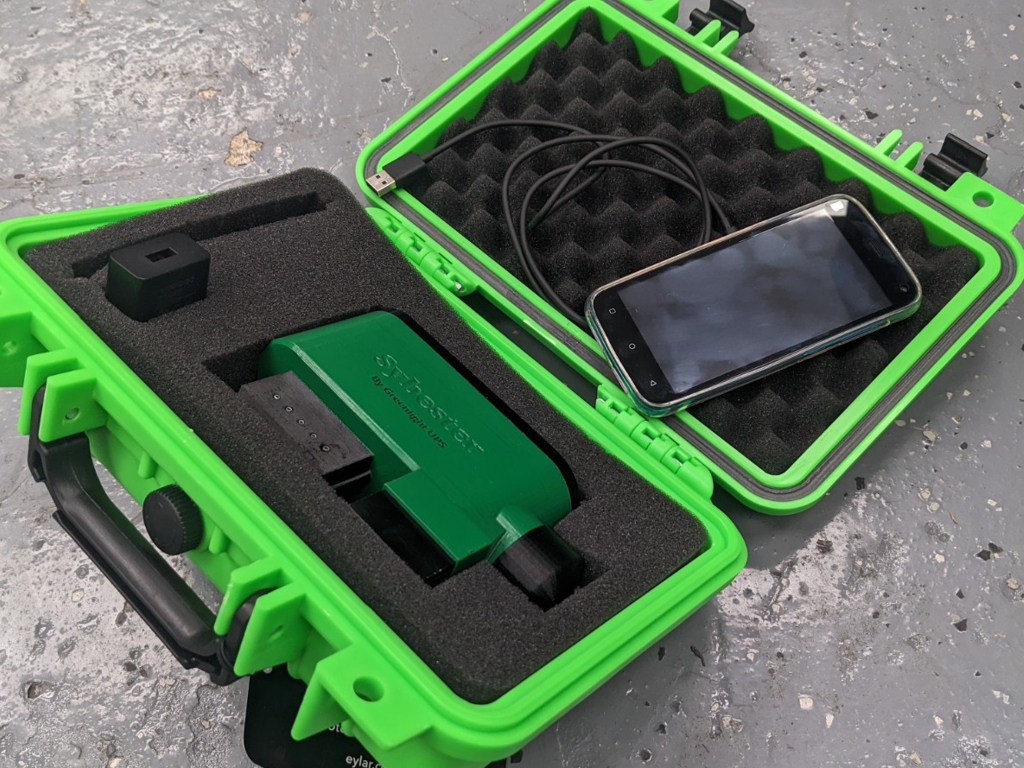

Hard Case with Foam Inserts
DC Voltage: 0-110vdc +/- 3%
Thermister Value: 0-40000 ohms (50-100 degrees F)
Resistor Class Value: 6-69000 ohms (V66-C69)
Voltage Drop during test: 0-9.9 volts
Module: 8 x 2 x 4.5 inches 9.6 oz
Phone: Blue C5 or similar
Box: 11.6 x 8.3 x 3.8 Inch 3.7 lbs
